Overdenture Restorations

  Ball Abutment, Locator Abutment,  MultiLOC Abutment options and wide prosthetic product range for Total Edentulous Prosthesis  Restorations.





GENEL
Bilgiler
Ball Abutment Ball Abutment

Removable Prosthetic option which provides  high stability at edentulous cases enables facilitating a quick, easy and effective measuring process.

Minimized Surface Friction coefficient thanks to the TIN Titanium Nitride Technology.


Locator Abutment Locator Abutment

Provides loading the implants up to the ± 20o at the removable Overdenture Restoration.

Zest Anchor, world’s number 1 manufacturer of overdenture retainers, high stretch capability and perfect elastic precision by plastic housing (matrix) compatibility.


BALL
Abutment
Ball Abutment

Perfect comfort with minimized surface friction coefficient TIN Titanium nitride technology.

Movable (Rhein 83) prothesis option presents solutions for total toothless cases without angular problems of Implants with high retention and stability. The design of the sphere with a FLAT head in addition to the spherical inner surface of the elastic cap, permits vertical movement during mastication. Rhein83 female caps are manufactured out of a special nylon material that remains stable and continues to function in the oral cavity over long periods of time.

GRADE5 ELI Titanium Ball Abutment

Perfect functionality thanks to Grade 5 titanium

Ease of use with a single screwdriver

Laboratory and measurement stages which facilitate product range

Much better tightness facilities

By the surface technolgy, life span of plastic housing is increased so that this process  provides maximum comfort to the patient.


REMOVABLE RESTORATION BALL ABUTMENT

1. Thanks to its hex screwdriver canal, it has a structure that eliminates the need for any other instruments besides a screwdriver and provides ease of use.

2. Stabilization canal ensures fixing of products that are positioned on pick-up, healing screw and coping solid abutment.

3. 6 different gingival height size allows to select the suitable level for your patients.

4. Platform Switching drives the implant-abutment connection away from the shoulder area of the implant and prevents the resorption of peri-implantary bone.

5. Conic Connection provides perfect transfer ability and optimum power distribution design thanks to its Morse Taper (conical) connection that prevents microorganism transmission.



COMFORTABLE and LONG LIFE SPAN
Titanium Nitride Technology
In the removable Ball Attachment and Localized Abutment (Locator) prosthetic products, abutment surface resistance (hardness) strength was quadrupled and surface friction coefficient was minimized thanks to the TiN Titanium Nitride technology.


BALL ABUTMENT

Platform Implant Ball Abutment
Ø 3.3 - Ø 3.7 H 0.5 /1.0 / 2.0 / 3.0 / 4.0 / 6.0mm
Ø 4.1 - Ø 4.7 H 0.5 /1.0 / 2.0 / 3.0 / 4.0 / 6.0mm

Ball abutment offers removable Rhein83 which supports high retension and stability at the edentulous cases on non-angular implant problems. Minimized surface friction coefficient  was minimized and comport in use through Titanium Nitride Technology



RHEİN 83 S.r.l.

Rhein 83, an Italian company founded in 1983, manufactures high quality and long-lasting implant prosthetic products that are the preferred choice of dentists and technicians in 85 countries today.

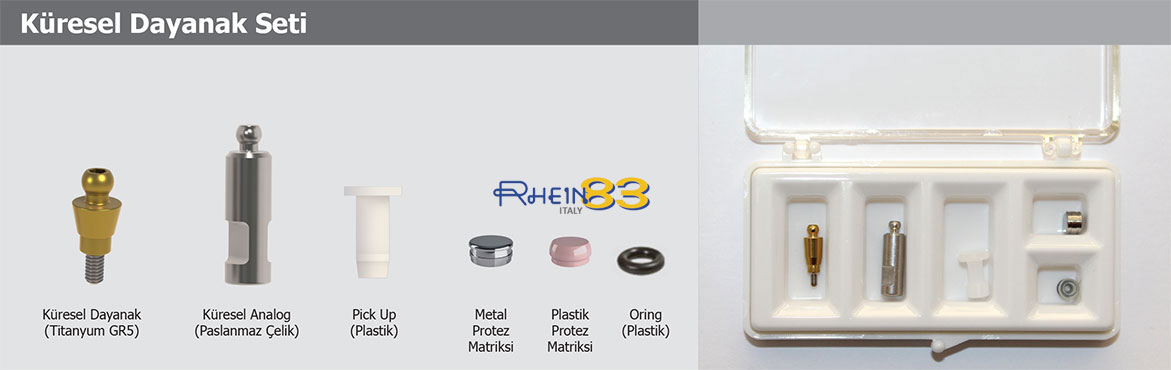

The Mode Implant mobile prosthesis Ball Attachment uses Rhein 83 products in metallic and plastic matrices.




PRECISION and LONG LIFE SPAN

Removable prosthesis retainers become exposed to corrosion over time because of their use, and the continuous connecting and removing processes of the prosthesis by the patient for cleaning purposes decrease the life of these products substantially.

Thanks to the TiN (Titanium Nitride) coating used on the abutments in the Mode Implant Ball Attachment system, surface hardness was increased and friction between it and the plastic retainer was reduced by 4 times its original force. Rhein 83 slots, which are manufacturing with high technology, provides comfortable use for a long time, up to 12 months, without getting corrosion.

With their high elastic retention capability and rigid structure, Rhein 83 components, whose flexibility rates are quality controlled, provide 4 different color options for elasticity and retention features in Ball Attachment plastics.

These long-life plastics ensure successful results, even in cases of unbalanced prosthesis.






LOCATOR
Abutment
LOCATOR ABUTMENT

Allows loading the Implants up to ±20 angle at the applications of removable overdenture restoration.

The world’s Number one Manufacturer (Zest Anchors) plastic and metal caps (housing / matrix) compliance with high flexion capability and perfect elasticity.

GRADE 5 ELI TITANIUM LOKALIZED ABUTMENT

Unique Rotating Prosthesis Cap is ideal for unparalleled angular implants.

By the TIN surface technolgy, lifespan of plastic housing is increased so that this process provides high confort to the patient.

It can be loaded and torqued with a single type of screwdriver.


 REMOVABLE RESTORATION LOCATOR ABUTMENT

1. Thanks to its hex screwdriver canal, it has a structure that eliminates the need for any other instruments besides a screwdriver and provides ease of use.

2. 6 different gingival height size allows to select the suitable level for your patients.

3. Platform Switching sayesinde implant-abutment bağlantısını implantın omuz bölgesinden uzaklaştırarak peri implanter kemikte rezorbsiyonu önler.

4. Conic Connection provides perfect transfer ability and optimum force distribution design thanks to its Morse Taper (conical) connection that prevents microorganism transmission.




LOCATOR ABUTMENT

Platform Implant Locator Abutment
Ø 3.3 - Ø 3.7 H 0.5 /1.0 / 2.0 / 3.0 / 4.0 / 6.0mm
Ø 4.1 - Ø 4.7 H 0.5 /1.0 / 2.0 / 3.0 / 4.0 / 6.0mm

Provides loading the implants up to the ± 20o at the removable Overdenture Restoration. Zest Anchor, world’s number 1 manufacturer of overdenture retainers, high stretch capability and perfect elastic precision by plastic housing (matrix) compatibility.


ALL IN ONE AMBALAJ İÇERİĞİ


ZEST ANCHORS MARTIX (USA) SİSTEMLERİ

American company Zest Anchors has been the world’s number 1 manufacturer of overdenture retainers for 40 years.

For cases involving angular problems, the male ±10° and female ±20° plastic housing (matrix) provides up to 40° motion and has the advantage of being compatible with the implant angle. LOCATOR Substitute Male Packages (transparent, pink, blue) can be used to restore an implant that has a maximum divergence angle of 10 degrees (20 degrees between implants). The LOCATOR Male Processing Package allows you to select your own way of holding.


MULTI-BASE
Abutment
MULTI BASE Abutment MULTI BASE Abutment

Multi-Base abutment system is intended for use in cases where implant angulation correction is required.

Multi-Base system is simple and easy to use and consists of two parts. Base and Covers are screwed together in order to provide extra strength and stability assuring a long-term solution. Available in a range of angles and heights 17° and 30° with cuff-heights of 2.5mm, 3.5mm and 4mm The flexible plastic holder has exceptional flexibility for easy insertion of the Multi-Base into the implant.


Wide Range of Products According to Your Preference



Designed to be used with parallel and non-parallel implants, Improving the production accuracy process with BALL SCREW & LOCATOR  SCREW for overdenture restorations

Multi Base is recommended above 30 degrees of divergence between implants, allowing maximal durability of the caps and minimizing the frequency of patient follow-up.  Multi-Base overdenture-implant attachment system is designed for use with overdenture by endosseous implants in mandible or maxilla. The additional new restorative parts provide a comprehensive solution for any clinical condition. With high esthetic result, this advanced line of products adds simplicity, versatility and flexibility to the work of both dentist and technician.
